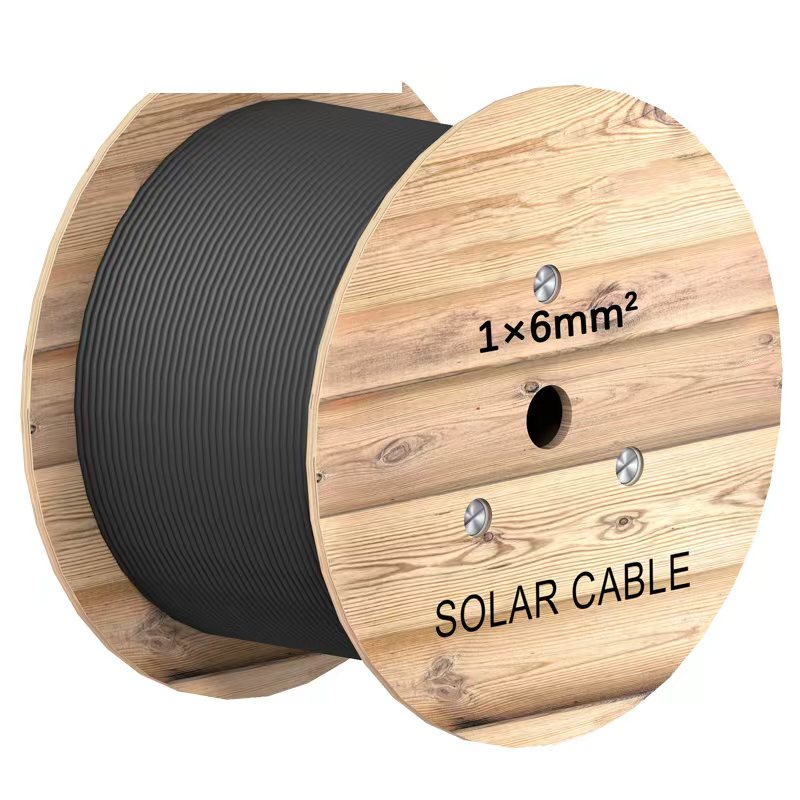

PRODUCTS>TUV 2PFG 1169 Solar Cable, 6 mm², 1500 V

TUV 2PFG 1169 Solar Cable, 6 mm², 1500 V

Suitable for harsh outdoor environments
Certified by TUV/UL/IEC/CE, with a service life of up to 25 years
Suitable for installation in photovoltaic power stations, rooftop and floating power stations
Compatible with mainstream solar connectors
Our cables have been applied to a total of 26 GW projects as early as 2022
Get quotes online and enjoy free samples

Category: TUV Certified Solar Cable

Tags: Photovoltaic Cable, 6 mm² Solar Cable

Product Introduction

Description:

The WiLEADER® MC4 6mm solar cable is a highly flexible cable specially designed for photovoltaic system connection. It is certified by multiple international standards including TUV/UL/IEC/CE/RETIE and conforms to UL4703, IEC62930 and EN50618/CPR norms, suitable for large-scale solar power stations, rooftop solar installations and surface floating power stations. This versatile solar cable meets diverse requirements of the solar industry and adapts to harsh indoor and outdoor environments such as rooftops, deserts, lakes, coastal areas and mountainous regions with high temperature, high humidity and high salinity. Its stable and high-quality connection ensures long-term safe operation of photovoltaic systems, effectively lowering failure rates and subsequent operating costs, enabling efficient and safe deployment of photovoltaic installations to achieve sustainable and stable economic returns.



6mm Solar Cable Specifications

Conductor Tinned Class 5 flexible conductor, compliant with EN 60228 and IEC 60228 standards. Smoke emission Based on UNE-EN 60754-2 and IEC 60754-2.
Insulation and Sheath Electron beam cross-linked polyolefin copolymer European CPR Cca/Dca/Eca, according to EN 50575
Rated voltage 1000/1500 V DC, Uo/U = 600 V/1000 V AC Water resistance performance laugh
Test voltage 6500V, 50Hz, 10min Radio de curvatura mínimo 5D (D: diámetro del cable)
Clasificación de temperatura -40°C to 120°C Optional features Metre-by-metre marking, rodent and termite resistant.
Fire show No flame propagation in accordance with UNE-EN 60332-1 and IEC 60332-1. Degree awarding process TUV/UL/NET/IEC/CE/RoHS



Dimensions

The size ranges from 1.5 mm² to 120 mm².

Construction Conductor construction Conductor Exterior
Maximum resistance
 Current carrying capacity
n×mm2 n×mm mm mm Ω/Km A
(16AWG)1×1.5 30×0.25 1.58 4.90 13.3 30
(14AWG)1×2.5 50×0.256 2.06 5.45 7.98 41
(12AWG)1×4.0 56×0.3 2.58 6.15 4.75 55
(10AWG)1×6 84×0.3 3.15 7.15 3.39 70
(8AWG)1×10 142×0.3 4.0 9.05 1.95 98
(6AWG)1×16 228×0.3 5.7 10.2 1.24 132
(4AWG)1×25 361×0.3 6.8 12.0 0.795 176
(2AWG)1×35 494×0.3 8.8 13.8 0.565 218
(1/0AWG)1×50 418×0.39 10.0 16.0 0.393 280
(2/0AWG)1×70 589×0.39 11.8 18.4 0.277 350
(3/0AWG)1×95 798×0.39 13.8 21.3 0.210 410
(4/0AWG)1×120 1007×0.39 15.6 21.6 0.164 480
`
